Concrete Mixer Pump

Concrete Mixer Pump

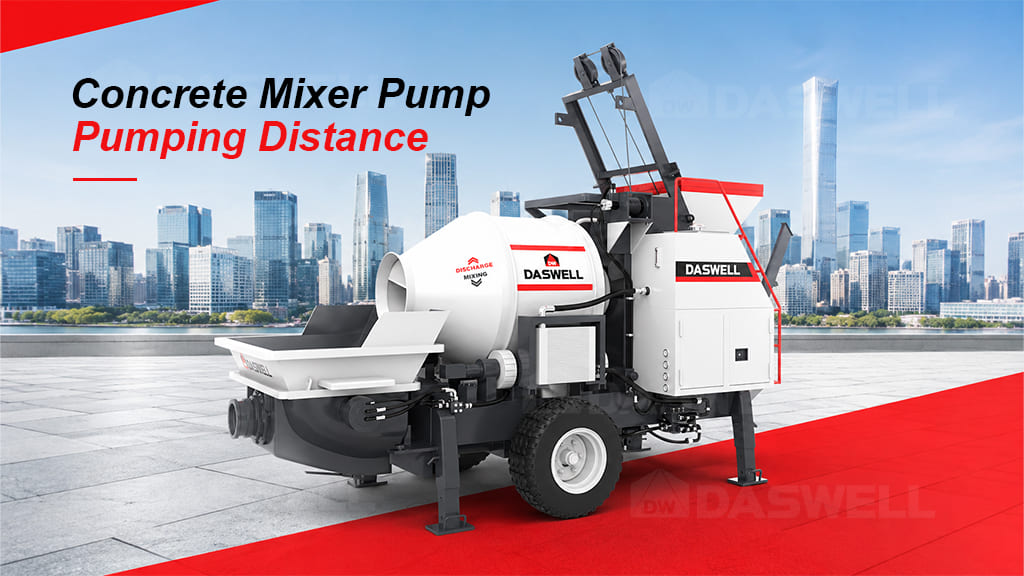

The concrete mixer with pump adds drum mixer to the trailer pump, which integrates concrete mixing and pumping functions into one. There are many types of concrete mixer pumps available.

  • Theoretical pumping capacity

    Theoretical pumping capacity:

    30-45m3/h
  • Power

    Power:

    Diesel engine / Electric motor

The loader feeds the sand, stone, cement and other materials into the hopper and controls the hopper loading with the remote control. The mixed concrete is directly discharged into the pumping hopper and pumped to the destination through the pumping system. The whole operation is quite simple. Moreover, the concrete mixer pump also has the characteristics with low labor intensity, small investment and high return. Therefore, a reliable and reputable concrete mixer pump manufacturer is very important for your investment.

Systems & main parts details

Main parts details of concrete mixer pump

Power system

We use the original imported main oil pump from Kawasaki, Korea. Of course, you can also choose Rexroth main oil pump. The diesel pump uses a Weichai diesel engine.

Main pumping system

Open loop for hydraulic oil system. Reliable main oil pump and concrete cylinder.

Distribution system

Adopt brand swing cylinder and S valve. The glass plate and cutting ring are made of special wear-resistant material.

Mixing system

Adopt China Top 1 mixing motor. Wear resistant mixing blades and mixing shaft. The hardness of the left and right half shaft can reach to HB250-280.

Cooling and filtering device

The filtering accuracy of the main pump suction oil filter is 100μm. Adopt high-quality cooler used for aeronautic.

Hydraulic pipe and valves

Adopt Italy Manuli oil hose and Taiwan Yuken hydraulic control valve.

Electrical control system

Use Japan Omron intermediate relay and famous brand proximity switch.

Mixing drum

450L big mixing volume. Adopt 250 thicken channel steel, integrated type, which makes the whole structure very stable. Double hydraulic motors make sure that the driving speed is much faster and the mixing efficiency is much higher.

Pumping pipes

Concrete mixer and pumps are equipped with a complete range of pipes to meet the needs of our customers in different working conditions.

Daswell advantage

Advantage of concrete mixer pump

  • Our concrete mixer and pumping machine is equipped with hydraulic oil tank that can be pickling and phosphating treatment of steel pipe. Moreover, the hose and valve block has a special cleaning oil tank.
  • The diesel cleaning port is first treated with high temperature, and then blown with a pressure air pump to ensure that no impurities are left. This really ensures that the oil quality of the hydraulic oil inside the system is clean, the equipment failure rate is lower, and the service life of the system is longer.
  • Before delivery, the workers debug the cement mixer with pump, and pump water for 8 hours, and divide it into three sections: high, medium and low pressure to test the pressure to ensure the stable operation of the whole machine.
  • Our mobile concrete mixer with pump is equipped with an energy storage device and a current compensator, which has a certain compensation effect when the voltage and current are unstable.
  • The pumping pipes are seamless high-pressure pipes. The diameter of the pipe is 125mm and the thickness is 4.5mm (of which the elbow is 5mm). Equipped with C-type quick pipe clamp, it is easy to install and disassemble, save time and improve work efficiency.

Factors we need to consider when buy a concrete mixer pump

  • Pumping capacity, that is, how many cubic meters of concrete are transported per hour;
  • Maximum aggregate size;
  • Power type, which requires you to determine whether you should choose a diesel engine or an electric motor according to the construction situation;
  • Pumping distances, including vertical pumping distances and horizontal distances;
  • Concrete slump. Concrete slump greater than 100 more suitable for pumping.

Services provided for concrete mixer and pump

Services of concrete mixer pump

  • Technical staff provide customers with equipment selection, technical comparison and one-to-one service.
  • Our portable concrete mixer pump has a one-year warranty, except for wear and tear parts.
  • Establishment of local after-sales service network and timely supply of wearing parts.
  • After-sales engineers are ready to guide various problems in the process of installation and use.
  • On-time delivery and deliver the concrete mixer with pump for sale to the customer's designated port.

FAQ

Q: What are the horizontal and vertical pumping distances of your concrete mixture pump?

A: Horizontal pumping distance is 200 meters, vertical pumping distance is 50 meters.

Q: What is the hopper capacity?

A: 0.8m3

Q: How many cubic meters of concrete can be pumped per hour?

A: The mixer drum can produce about 20 cubic meters of concrete per hour. The pumping system can pump about 50 cubic meters of concrete per hour.

Q: Can your machine pump 40mm aggregates?

A: Yes, of course.

Q: Can the functions of pumping and mixing be used separately?

A: Yes. If the mixer machine does not produce enough concrete, a concrete mixer truck can be used to transport the commercial concrete for pumping. Or add an additional mixer.

Q: How many workers are needed for the whole machine to work?

A: The whole set of equipment needs only five people to operate. One person is responsible for loading by the forklift, one person is responsible for remote control of the equipment, one person is responsible for putting cement, and two people are responsible for taking over and removing the pipes on the floor.

The mixer machine and transfer pump are directly controlled by one remote control, which is simple to operate. Compared with the traditional equipment, there are fewer construction people and the operation is more simple.

Q: How long is the delivery time?

A: If the voltage is different, the delivery time of the electric concrete mixer pump is 20-25 days.

The delivery time of diesel concrete mixer pump is usually 7-10 days.

Working site of concrete mixer pump

Technical Data:

Parameter

Unit

EMP40

DMP40

DMP50

Power

kw

45kw

Weichai diesel engine; 66kw

Weichai diesel engine; 85kw

Whole machine

Length

mm

4250

4500

4680

Width

mm

2100

1850

2100

Height

mm

2700

1950

2300

Weight

kg

4000

4000

4200

Mixer

Mixer model

/

JZM450

JZM450

JZM450

Theoretical mixing capacity

m3/h

15-25

15-25

15-25

Maximum aggregate size

mm

40

40

40

Working cycle time

s

72

72

72

Feeding height

mm

1400

1400

1400

Hopper capacity

m3

0.65

0.65

0.65

Pumping system

Theoretical pumping capacity

m3/h

40

30

45

Theoretical pumping pressure

MPa

8

8

10

Delivery cylinder

/

200*800

200*800

230*800

Hydraulic system

/

Open

Open

Open

Distribution valve

/

S valve

S valve

S valve

System pressure

MPa

28

28

28

Delivery pipe diameter

mm

125

125

125
