Trailer Concrete Pump
Concrete trailer pump is a kind of concrete pumping equipment used to pump mixed liquid concrete to the construction site. Usually, the position of the drag pump needs to be fixed before construction, and the pipeline should be laid in advance.
Maximum theoretical concrete output:
30-90m³/h
Output pressure:
10-22MPa
Daswell concrete trailer pump for sale is a kind of S-tube valve drag pump, and the conveying aggregate size is 40mm. The equipment is mainly used for concrete construction of railways, highway tunnels, bridges and culverts, hydropower, mines, high-rise buildings and other projects.
It greatly improves the construction efficiency of engineering buildings, saves labor costs, shortens the construction period, and expands economic benefits.
Different Types of Daswell concrete trailer pump
In order to meet different engineering needs, Daswell has developed a variety of concrete pump trailers to provide customers with diversified choices.
Electric Type and Diesel Type: According to the power, it can be divided into electric drag pump and diesel drag pump.
Small and Large: According to the pumping capacity, it can be divided into 30 pumps, 40 pumps, 60 pumps, 80 pumps, 90 pumps, etc. As the name suggests, it pumps 30-90 cubic meters per hour. Among them, the small mini drag pumps 30 pumps and 40 pumps are more suitable for small and medium-sized projects such as rural housing construction.
Fine Stone Pumping Machine and Large Aggregate Pumps: According to the diameter of pumped aggregate, it can be divided into fine stone pump and large aggregate pump. The fine stone pump can pump the maximum particle size of aggregate ≤30mm. The large aggregate pump can pump the maximum aggregate particle size ≤ 40mm.
Special Used Trailer Concrete Pump: According to the usage scenarios, trailer mounted concrete pump can also be divided into special pumps for tunnels, special pumps for high-speed bridges, etc.
Therefore, it is recommended that you send your engineering pumping requirements to us before consulting the price, so that we can provide you with detailed technical services as soon as possible.
How does Daswell Utilize Trailer Concrete pump system and parts for efficient working?
When it comes to reliability and efficiency, the Daswell trailer concrete pump stands out with its superior engineering and high-quality components. Every aspect of its pumping operation is optimized by seven major systems, ensuring smooth performance and durability. Daswell’s commitment to excellence is evident in every detail—only top-tier global brands are used in its construction.
Powerful and efficient power system
- Main oil pump: We use high-performance Kawasaki oil pump, which is imported from Korea. For the 60 pumps and above, they features the original Rexorth main oil pump for unmatched reliability.
- Diesel engine: All the trail mounted concrete pumps are equipped with a robust Weichai diesel engine. The Weichai engine has consistent power for demanding jobs.
High-performance main pumping system
- Hydraulic oil circuit: It adopts open-circuit design for optimal fluid dynamics.
- Concrete delivery: Daswell has precision-engineered concrete conveying cylinders paired with industry-leading main oil pumps.
Precision distribution system
- Swing cylinder and S-valve: Our company has premium-brand swing cylinder with nested S-pipe valve. It can realize smooth concrete flow.
- Wear-resistant components: We utilizes specially treated spectacle plates and cutting rings made from ultra-durable materials. It can prolong the service life.
Reliable stirring system
- Stirring motor: There are high-quality motor for consistent mixing performance.
- Wear-resistant blades: The pedal-type stirring blades are hardened for longevity.
- Hardened half-shafts: It is treated to about HN250-280 hardness. And the nitride layer is above 0.3mm. Surface hardness is over HV550. These can realize maximum durability.
Advanced cooling and filtration
- Oil filtration: It adopts premium Chinese-brand oil filter with 100μm filtration precision. This helps realize clean hydraulic operation.
- Cooling system: The high-efficiency airline cooler for superior heat dissipation and reliability.
Durable hydraulic system
- Hydraulic pipelines: For this parts, there are Italy’s Manuli oil pipelines for leak-free and high pressure performance.
- Control valves: The control valves utilizes precision Taiwan Yuken hydraulic control valves. It can make sure smooth operation.
Intelligent Electronic Control System
- Relays: It is Japan’s Omorn intermediate relays, which ensures dependable electrical control.
- Sensors: There are high accuracy proximity switches from leading brands.
Daswell trailer concrete pump uses world-class components for unmatched reliability, optimized hydraulic and pumping systems for maximum efficiency, wear-resistant materials for extended lifespan, and intelligent electronic controls for precision operation.
The trailer type pumping machine features Kawasaki, Rexroth, Weichai, and Omron parts for reliability. For the contractors who has requirements on power, durability and precision. The Daswell concrete pumping machines are ultimate choices.
Want to buy high quality trailer pumping equipment with high efficiency? Get in touch with Daswell company.
How does the trailer concrete pump work?
Power Conversion
When generator or diesel engine starts, the power source will drive the main hydraulic pump. And the main hydraulic pump pressurizes hydraulic oil to create the energy needed for the pumping.
Concrete Delivery
The pressurized oil drives the hydraulic cylinder assembly. When the piston rod extends, it pushes the concrete cylinder piston forward. It forces concrete into the delivery pipeline. At the same time, the alternating action between the distribution valve and main cylinders creates a continuous flow: When one cylinder retracts, it draws fresh concrete from the hopper. While the other extends, pushing concrete into the pipeline. This synchronized cycle ensures non-stop material flow.
Precise material placement
Finally, it will pump the concrete to the pouring site through the conveying pipeline horizontally and vertically.
How much does a trailer concrete pump cost?
The Daswell trailer-mounted concrete pump has become popular across China and in over 30 countries worldwide. We deliver exceptional value and reliability to construction professionals. As demand grows, many clients ask: What is the price range for a concrete trailer pump?
Generally, the price of a concrete trailer pumper is about tens of thousands to hundreds of thousands of dollars per unit. It depends on the specifications.
At Daswell, you can get cost effective pricing. It is more affordable than many competitors. And our products are high quality components, ensuring long-term durability. Meanwhile, we can also customize for you. It can meet your specific project requirements.
You can get a precision configured pump machine for your own needs in Daswell. Due to the different requirements of the job site, our engineer will analyze your working conditions. According to the distance, height and output requirements of the job site, we will optimize configurations for maximum efficiency with competitive quote with no hidden costs.

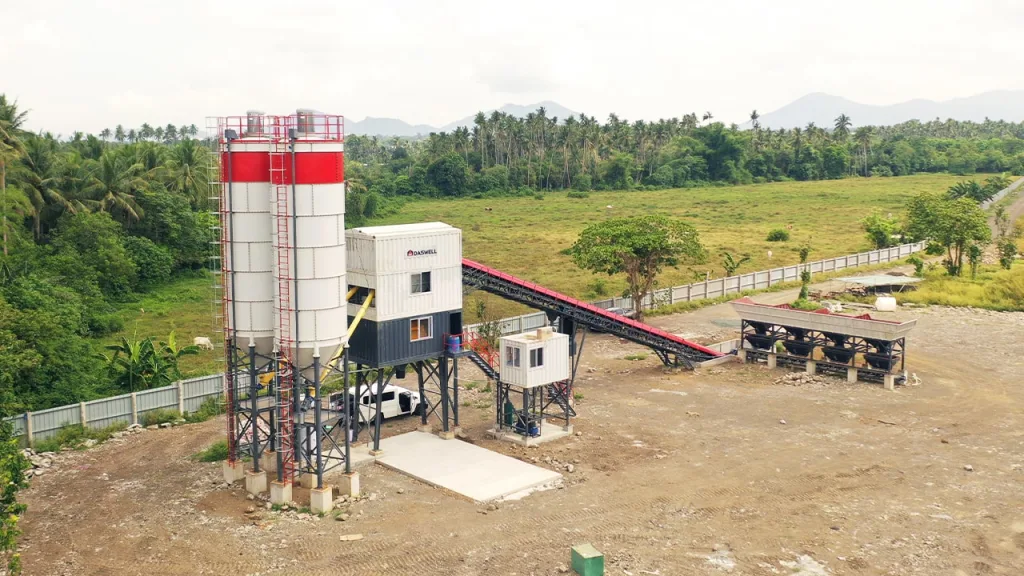

Except for the pumping machine, Daswell also has concrete mixing facilities for you to choose from. You can get whole set of concrete making machine for your projects from Daswell company. And we can give you discount if you are interested in our other machines.
If you have interests on Daswell trailer concrete pump and price, you can contact us through Daswell official website. Our sales team will respond promptly with detailed technical guidance, customized pump recommendations, and transparent pricing.
Electric Trailer Pump VS Diesel Trailer Pump, Which is suitable for you?
When selecting a trailer-mounted concrete pump, how to choose between a diesel trailer pump and a electric model. Actually, it mainly depends on the job site conditions and environmental requirements. Here are some knowledge for you.
Electric Trailer Concrete Pumps: It is suitable for urban projects, where has strict regulation on noise and emissions. But it has requirements on stable grid power. If the electricity of job site is not stable, it will be not suitable.
- Zero onsite emissions: It is ideal for eco-sensitive areas.
- Low operating noise: It can reduce community disturbance.
Diesel Type Trailer Pumps: This pumps are ideal for remote site or areas with unstable or no power supply. While, it should be considered that there may be some exhaust emission, even though Daswell machinery meet emission standards.
In general, when you considering the power type of concrete trailer pumps, you should know these three factors for reference
If you do not know how to choose a suitable machine for your projects, we can suggest you according to your requirements. Please send messages to us.
How far can Daswell Concrete Trailer pump vertical and horizontal pumping Reach?
Daswell have various types of concrete trailer pump machines. Their specifications are different. For your project using, you should know their vertical and horizontal pumping capacities. Knowing these parameters will be helpful for choosing a suitable pumping machines for your project.
All of the Daswell trailer mounted concrete pumps are standard pipe diameters. We utilize 125mm piping.
- For your 12-15 floor buildings, about 36 to 40m, the mid-range models can meet your needs. Daswell CPD40-10-66 and CPD60(CPE60) are applicable. Their vertical pumping distance can reach 90 to 100 meters. And the horizontal distance can be 350 to 500 meters. They are suitable for medium-rise residential and commercial projects.
- For some constructions, which is up to 44 floor, about 130 meters high, you can choose our CPD80-18-176. Its maximum vertical distance can reach 130+ meters, and the horizontal distance can be over 600 meters. It is ideal for large scale high-rise developments. Besides, there are also concrete boom pump trucks with higher pumping distance for you.
According to your different scales, Daswell has different pumping machines for you to choose. Meanwhile, we can also help you plan the pipeline routing and placement strategy. And you can choose the most cost-effective solution.
It should be mentioned that the parameters above are theoretical. And it will vary based on the conditions and factors such as the diameter and length of piping used. If you want to know more about Daswell trailer type concrete pumping machine, get in touch with Daswell sales team.
Technical Data:
Diesel Engine
| Item | CPD40-10-66 | CPD60-13-130 | CPD80-16-176 | CPD90-18-176 | CPD90-20-199 |
|---|---|---|---|---|---|
| Max. theoretical concrete output capacity (m3/h) | 35 | 81/59 | 88/57 | 88/57 | 88/50 |
| Total power (kw) | 66 Weichai engine | 130 Weichai engine | 176 Cummins engine | 176 Cummins engine | 199 Weichai engine |
| Max. aggregate size (mm) | 40 | 40 | 40 | 40 | 40 |
| Outlet pressure (MPa) | 10 | 9/13 | 11/16 | 11/18 | 14/22 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ230*800 | Φ200*1800 | Φ200*1800 | Φ200*1600 | Φ200*1600 |
| Hopper capacity (m3) | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 |
| Delivery pipe diameter (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Concrete slump | 160~220 | 160~220 | 160~220 | 160~220 | 160~220 |
| Overall dimension (mm) | 4500×1850×1750 | 6300×2100×2350 | 6300×2100×2550 | 6300×2100×2350 | 6400×2120×2450 |
| Total weight (kg) | 3400 | 6300 | 6900 | 6900 | 6990 |
Electric Motor
| Item | CPE40-10-55 | CPE60-13-90 | CPE80-16-110 | CPE90-18-132 | CPE90-22-160 |
|---|---|---|---|---|---|
| Max. theoretical concrete output capacity (m3/h) | 55 | 65/41 | 86/60 | 88/62 | 95/62 |
| Total power (kw) | 55 | 90 | 110 | 132 | 160 |
| Max. aggregate size (mm) | 40 | 40 | 40 | 40 | 40 |
| Outlet pressure (MPa) | 10 | 13 | 16 | 18 | 22 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ200*800 | Φ200*1600 | Φ200*1800 | Φ200*1800 | Φ200*1800 |
| Hopper capacity (m3) | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 |
| Delivery pipe diameter (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Concrete slump | 160~220 | 160~220 | 160~220 | 160~220 | 160~220 |
| Overall dimension (mm) | 4500×1850×1650 | 6000×2100×2250 | 6300×2100×2250 | 6300×2100×2250 | 6800×2100×2250 |
| Total weight (kg) | 3300 | 5800 | 6200 | 6500 | 6800 |
