Concrete Pumps in Indonesia
Concrete Pumps usually use pressure to transport concrete along the pipeline continuously. Our Concrete pumping machines popular products are mainly concrete boom pump truck, trailer pump, concrete mixer pump, etc.
A concrete pump is the fastest and most reliable way to transport liquid concrete—from the mixing site directly to the pouring location in Indonesia. By eliminating manual labor, our advanced pumping equipment ensures faster construction, precise placement, and cost savings.
Whether you’re working on high-rise buildings, bridges, tunnels, or large-scale infrastructure, Daswell offers the perfect concrete pump to meet your project’s demands in Indonesia locally.
Daswell 3 types of concrete pumps in Indonesia for your different projects
- It combines mixing and pumping in one machine.
- It is perfect for hard-to-reach job sites where ready-mix concrete is unavailable.
- Using Daswell concrete mixer pumping machine, it ensures continuous workflow with no delays.
- This trailer type concrete pumper is designed for long-distance and high vertical pumping.
- It is suitable for dams, bridges, skyscrapers, and major infrastructure.
- It provides high-pressure delivery with reliable efficiency.
- It features a hydraulic robotic arm for accurate concrete placement.
- This pumping machine is excellent for urban construction, high-rises, and large slabs.
- It can highly save your time and labor with fast, flexible pouring.

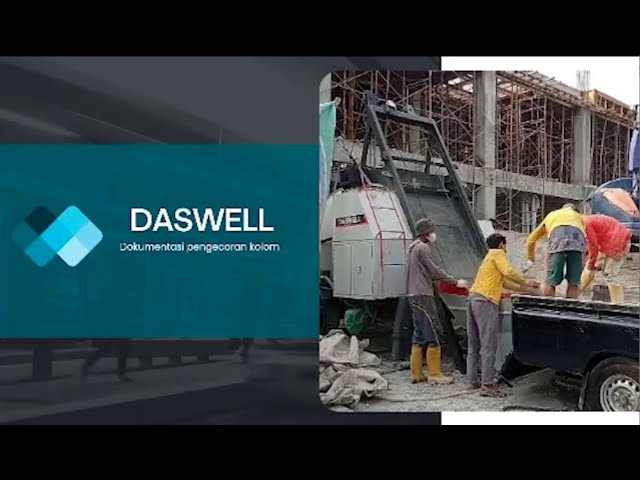

Daswell concrete pumps machines for Indonesia display video
Daswell Hot Selling Concrete Pumps in Indonesia
For your concrete pumping requirements in Indonesia, Daswell has two types of concrete mixer pumping machines for you. The DMP50 and EMP40 are popular among our Indonesian customers. The DMP50 adopts diesel engine. And the EMP40 utilizes electric power. Besides, we can also provide both diesel and electric for each model. You can choose the suitable models according to your specific requirements. Have any doubts? Just send messages to Daswell.
Except for the popular mixer pumps, Daswell also provides trailer pumps and boom pumps for you to choose. If you have interests, please contact us.
Daswell Hot Selling Concrete Mixer Pumps DMP50 in Indonesia
| Parameter | Unit | DMP50 | |
| Power | kw | Weichai diesel engine; 85kw | |
| Whole machine | Length | mm | 4680 |
| Width | mm | 2100 | |
| Height | mm | 2300 | |
| Weight | kg | 4200 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 45 |
| Theoretical pumping pressure | MPa | 10 | |
| Delivery cylinder | / | 230*800 | |
| Hydraulic system | / | Open | |
| Distribution valve | / | S valve | |
| System pressure | MPa | 28 | |
| Delivery pipe diameter | mm | 125 | |
Daswell Hot Selling Concrete Mixer Pumps EMP40 in indonesia
| Parameter | Unit | EMP40 | |
| Power | kw | 45 | |
| Whole machine | Length | mm | 4250 |
| Width | mm | 2100 | |
| Height | mm | 2700 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 40 |
| Theoretical pumping pressure | MPa | 8 | |
| Delivery cylinder | / | 200*800 | |
| Hydraulic system | / | Open | |
| Distribution valve | / | S valve | |
| System pressure | MPa | 28 | |
| Delivery pipe diameter | mm | 125 | |
Daswell Trailer Pumps Technical Data
Diesel Engine
| Item | CPD40-10-66 | CPD60-13-130 | CPD80-16-176 | CPD90-18-176 | CPD90-20-199 |
|---|---|---|---|---|---|
| Max. theoretical concrete output capacity (m3/h) | 35 | 81/59 | 88/57 | 88/57 | 88/50 |
| Total power (kw) | 66 Weichai engine | 130 Weichai engine | 176 Cummins engine | 176 Cummins engine | 199 Weichai engine |
| Max. aggregate size (mm) | 40 | 40 | 40 | 40 | 40 |
| Outlet pressure (MPa) | 10 | 9/13 | 11/16 | 11/18 | 14/22 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ230*800 | Φ200*1800 | Φ200*1800 | Φ200*1600 | Φ200*1600 |
| Hopper capacity (m3) | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 |
| Delivery pipe diameter (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Concrete slump | 160~220 | 160~220 | 160~220 | 160~220 | 160~220 |
| Overall dimension (mm) | 4500×1850×1750 | 6300×2100×2350 | 6300×2100×2550 | 6300×2100×2350 | 6400×2120×2450 |
| Total weight (kg) | 3400 | 6300 | 6900 | 6900 | 6990 |
Electric Motor
| Item | CPE40-10-55 | CPE60-13-90 | CPE80-16-110 | CPE90-18-132 | CPE90-22-160 |
|---|---|---|---|---|---|
| Max. theoretical concrete output capacity (m3/h) | 55 | 65/41 | 86/60 | 88/62 | 95/62 |
| Total power (kw) | 55 | 90 | 110 | 132 | 160 |
| Max. aggregate size (mm) | 40 | 40 | 40 | 40 | 40 |
| Outlet pressure (MPa) | 10 | 13 | 16 | 18 | 22 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ200*800 | Φ200*1600 | Φ200*1800 | Φ200*1800 | Φ200*1800 |
| Hopper capacity (m3) | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 |
| Delivery pipe diameter (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Concrete slump | 160~220 | 160~220 | 160~220 | 160~220 | 160~220 |
| Overall dimension (mm) | 4500×1850×1650 | 6000×2100×2250 | 6300×2100×2250 | 6300×2100×2250 | 6800×2100×2250 |
| Total weight (kg) | 3300 | 5800 | 6200 | 6500 | 6800 |
Daswell Boom Pumps Technical Data
Concrete boom truck 22m-38m:
| Parameter | TMBP22 | TMBP25 | TMBP30 | TMBP33 | TMBP38 | ||
| Whole truck | Drive way | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | |
| Engine | Yuchai | Yuchai | Yuchai | Yuchai | Man | ||
| Output power/speed (kw/rpm) | 147/2000 | 147/2000 | 177/2000 | 177/2300 | 228/2300 | ||
| Emission standard | Euro V | Euro V | Euro V | Euro V | Euro V | ||
| Tire size | 9.00R20 16PR | 9.00R20 16PR | 11.00R20 16PR | 11.00R20 | 12.00R20 | ||
| Arm & leg | Vertical height (m) | 21.9 | 25.5 | 29.7 | 33 | 38 | |
| Horizontal length (m) | 18.1 | 21.7 | 25.9 | 29.5 | 33.2 | ||
| Vertical depth (m) | 15.5 | 19 | 22 | ||||
| Fold type | M (three arms) | M (four arms) | M (four arms) | 5RZ | 5RZ | ||
| Rotary angle (°) | ±360 | ±360 | ±360 | ±360 | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8.5 | 8.5 | 8.5 | 8 | 8 |
| High pressure | 10.5 | 10.5 | 10.5 | 12 | 12 | ||
| Distribution valve | S valve | S valve | S valve | S valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 200/1200 | 200/1200 | 230/1450 | 230/1600 | 230/1600 | ||
| Hopper capacity (m3) | 0.65 | 0.65 | 0.65 | 0.5 | 0.5 | ||
| Feeding height (mm) | 1450 | 1450 | 1450 | 1450 | 1450 | ||
| Pipe diameter (mm) | 125 | 125 | 125 | 125 | 125 | ||
| Maximum aggregate size (mm) | 40 | 40 | 40 | 40 | 40 | ||
Concrete boom truck 38m-58m:
| Parameter | TMBP38 | TMBP42 | TMBP47 | TMBP50 | TMBP58 | ||
| Whole truck | Drive way | 6×4 | 6×4 | 6×4 | 6×4 | 8×4 | |
| Engine | Yuchai | Yuchai | Yuchai | Yuchai | MC11.44-50 | ||
| Output power/speed (kw/rpm) | 243/2100 | 243/2100 | 243/2100 | 243/2100 | 327/1900 | ||
| Emission standard | Euro V | Euro V | Euro V | Euro V | Euro V | ||
| Tire size | 11.00R20 | 11.00R20 | 11.00R20 | 11.00R20 | 385/65R22 5/315/80R22.5 | ||
| Arm & leg | Vertical height (m) | 38 | 40.1 | 47 | 50 | 57.6 | |
| Horizontal length (m) | 34.1 | 36 | 42 | 46 | 52 | ||
| Vertical depth (m) | 22.8 | 23.6 | 29.4 | 36.2 | 38 | ||
| Fold type | 5RZ | 5RZ | 5RZ | 6RZ | 6RZ | ||
| Rotary angle (°) | ±360 | ±360 | ±360 | ±360 | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8 | 8 | 8 | 8 | 8.5 |
| High pressure | 12 | 12 | 12 | 12 | 12 | ||
| Distribution valve | S valve | S valve | S valve | S valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 230/1600 | 230/1650 | 260/1800 | 260/1600 | 260/2200 | ||
| Hopper capacity (m3) | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | ||
| Feeding height (mm) | 1450 | 1450 | 1450 | 1450 | 1500 | ||
| Pipe diameter (mm) | 125 | 125 | 125 | 125 | 125 | ||
| Maximum aggregate size (mm) | 40 | 40 | 40 | 40 | 40 | ||
Where you can use Daswell concrete pumps in Indonesia?
Concrete pumps are essential for modern construction projects across Indonesia. They are widely used in:
How to choose a suitable concrete pump for your project in Indonesia?
When choosing a suitable concrete pump machine, you should consider your project scale, site conditions, and the mixed concrete quality. Here is a step-by-step guide to select the most suitable pump equipment.
Making sure the concrete pump equipment you required
Boom concrete pumps: This concrete pump boom truck is applicable for large-scale projects, such as high-rise buildings, bridges, dams, etc. It has long arms for long-distance pumping. You do not need to install pipelines. But it is more expensive than other types. And it also requires space for setup.
Line pump: Daswell has two kinds of line pumps for you to choose from. The trailer mounted concrete pumps are suitable for small-scale projects. It is flexible with lone hose lines at an affordable price. And this trailer type pump is more suitable for some places, which are narrow. But its pumping speed is lower than boom type. And you should install hose lines manually.
Except for the trailer type line concrete pumps. Daswell also has concrete mixer with pump. It can not only pump concrete but also mix. Different from boom concrete pump and trailer type concrete pump equipment, these mixer pumps can mix concrete on-site.
For your reference, whether you use the trailer or boom pumping machine, you need to prepare mixed concrete for pumping. We have various concrete mixing facilities for you.
7 reasons you should choose Daswell concrete pumps for your Indonesian projects
- Get pumping machine in a short time: Daswell has a branch in Indonesia. You can get your concrete pumping machine for your projects without delivery time.
- Convenient installation and maintenance service: Our engineer will help you install and operate the machine on the working site. Meanwhile, we also provide maintenance service, decreasing the breakdown time.
- Suitable for high-rise construction: Using a concrete pump, it can push concrete to high-rise construction easily. Especially, our concrete boom pumps are popular among customers for urban high-rises.
- Improving the efficiency: The traditional pouring method needs about 20 workers with low pouring speed. While choosing our concrete pump machine need fewer operators. 4 workers can operate the concrete pumping equipment. And the pumping speed is 6 times faster than manual pouring.
- Move conveniently: Both our concrete pump with mixer and the trailer pump machines have wheels for moving on construction sites conveniently. And the boom pump truck can over obstacles easily.
- Reducing costs: Utilizing concrete pumps can reduce both the labor costs and the time.
- Improving safety: It is reported that 62% fewer accidents on pump-equipped sites. Adopting concrete pumping machines for working, can eliminate workers falling from the formwork. At the same time, it can avoid slip hazards from spilled concrete.
