on-site Mixing Plant
On many construction site, it may be not easy to get concrete on time or in good quality. If the ready-mix transit truck is late, the concrete may already start to set. And if the project is far away, the transportation costs will become high. Especially, if the project is in remote areas, sometimes there is no batching plant around at all. These may cause delays, wasted materials, and higher project spending. It is key for you to get concrete on-site. To solve these problems, on-site mixing is a better choice.
What is The on-site mixing solution?

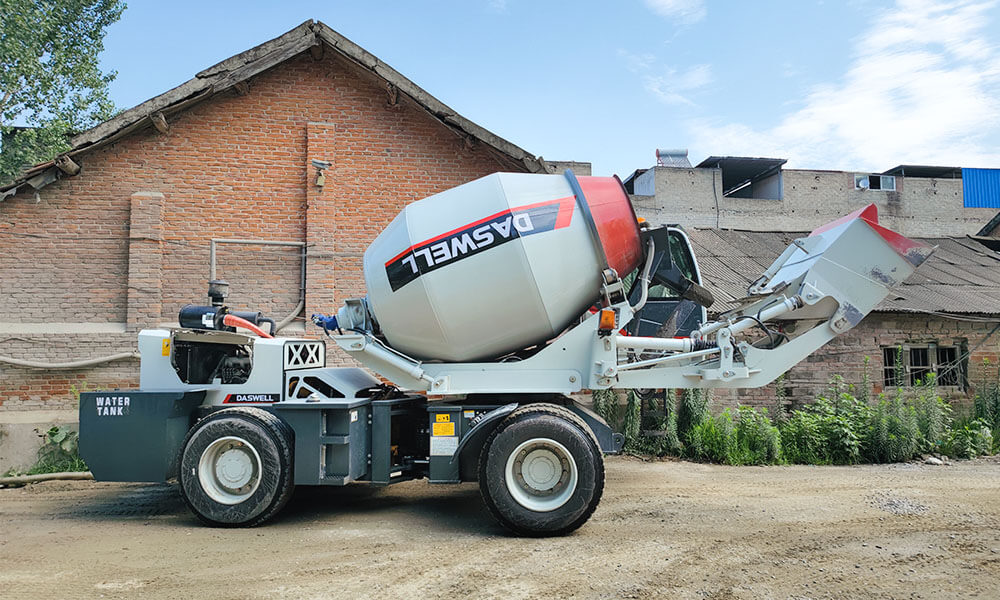

On-site mixing solution is producing concrete at the job site. Thus, the concrete will be fresh, consistent, and ready to use. Daswell provides an on-site mixing solution with a self-loading concrete mixer. It is a machine, which can load, mix, transport and discharge concrete directly on your site. With this machine, the concrete production will be simpler, faster, and more economical. It is ideal for projects, which cannot rely on on ready-mix supply.
If you have interests on Daswell on-site mixing solutions, just send an inquiry to us for more information.
Why choose Daswell self-loading concrete mixer as your on-site mixing solution?

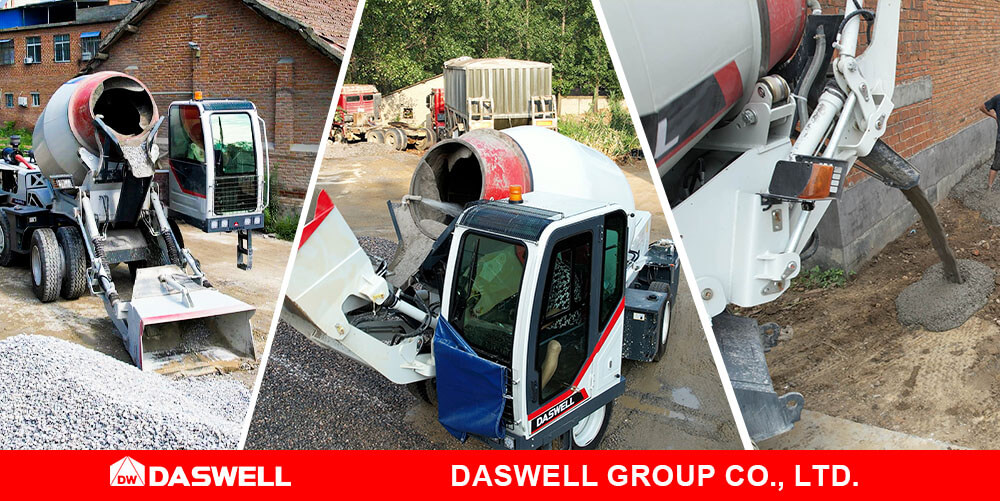

Daswell self-loading concrete mixer is a multi-purpose machine. It can replace several pieces of equipment needed in concrete supply. With a self-loading concrete mixing machine, you do not need to use a loader, a batching plant, and a transit mixer. Daswell self-loading mixer can perform all these tasks automatically. It can
- Load sand, stone, and aggregates automatically
- Measure cement and water accurately
- Mix concrete while transporting or stationary
- Drive directly to the pouring location
- Discharge concrete in any direction
Our self-loading mixer is popular among our customers, especially in Indonesia. You can use it for many concrete projects. For example, it is helpful for small to medium-sized construction projects, rural, island projects, or some contractors, who want to reduce equipment and labor costs.
It is easy for you to operate. It only requires one operator to drive the machine and control mixing. This highly reduces the manpower and training requirements.
Daswell has local service in Indonesia and Philippines. If you want to buy a machine for your on-site mixing projects in these two countries, Daswell can deliver high-quality mixers in short time. Meanwhile, we have professional after-sale service team for training and maintenance.
Daswell on-site mixing solutions for customers
Daswell Hot Selling SLDM2000 Model
| Model | SLDM2000 |
| Dimension (mm) | 5300*2350*2950 |
| Wheelbase (mm) | 2300 |
| Total weight (kg) | 7500 |
| Engine | Yunnei 4102 superc harged |
| Power (kw) | 78 |
| Gearbox | 280 integrated type |
| Drive axle | 2.0T wheel side deceleration axle |
| Tires | 16/70-R22.5 |
| Bucket capacity (m3) | 0.5 |
| Mixing capacity (m3) | ≥1.8 |
| Reduction ratio | 1:24 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | Made in China |
Daswell Hot Selling SLDM3000 Model
| Model | SLDM3000 |
| Dimension (mm) | 6300*2400*3050 |
| Wheelbase (mm) | 3200 |
| Total weight (kg) | 9000 |
| Engine | Yunnei 4105 superc harged |
| Power (kw) | 85/90 |
| Gearbox | 280 separated type |
| Drive axle | 2.5T wheel side deceleration axle |
| Tires | 16/70-R22.5 Double tire |
| Bucket capacity (m3) | 0.65 |
| Mixing capacity (m3) | ≥2.8 |
| Reduction ratio | 1:28 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | Made in China |
Daswell Hot Selling SLDM4000 Model
| Model | SLDM4000 |
| Dimension (mm) | 6500*2600*3450 |
| Wheelbase (mm) | 3200 |
| Total weight (kg) | 11000 |
| Engine | Yunnei 6105 superc harged |
| Power (kw) | 92 |
| Gearbox | 315 separated type |
| Drive axle | 3.0T wheel side deceleration axle |
| Tires | 16/70-R22.5 Double tire |
| Bucket capacity (m3) | 0.65 |
| Mixing capacity (m3) | ≥3.8 |
| Reduction ratio | 1:103 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | HL6F-B2700 (Domestic) |
DASWELL Self-loading Mixer for Sale
| Model | SLDM1200 | SLDM1800 | SLDM2600 | SLDM3500 | SLDM4000 | SLDM5500 | SLDM6500 | |
| Mixer drum | Mixer drum(L) | 1700 | 2740 | 3000 | 4740 | 6000 | 7800 | 9000 |
| Output capacity(m³) | 1.2 | 1.8 | 2.6 | 3.5 | 4 | 5.5 | 6.5 | |
| Mixer drum rotation speed (rpm) | 13 | 13 | 13 | 13-20 | 18-21 | 20 | 16.5 | |
| Vehicle | Overall dimension (mm) | 7300*1800*3450 | 7300*2650*3750 | 7860*2750*4100 | 7730*2700*4180 | 7640*2870*4750 | 8450*3100*4580 | 8450*3050*4830 |
| Wheel base (mm) | 2560 | 2600 | 2800 | 2650 | 2480 | 3350 | 2850 | |
| Curb weight (kg) | 4920 | 6500 | 7000 | 7661 | 9000 | 11200 | 12520 | |
| Drive form | Torque converter | Torque converter | Torque converter | Torque converter | Torque converter | Torque converter | Torque converter | |
| Max. speed (km/h) | 30 | 30 | 30 | 30 | 35 | 42 | 40 | |
| Max. gradeability (°) | 30 | 30 | 30 | 30 | 45 | 45 | 45 | |
| Min. turning radius (mm) | 4700 | 5300 | 5300 | 5300 | 4800 | 6200 | 4800 | |
| Min. ground clearance (mm) | 280 | 380 | 380 | 380 | 330 | 380 | 350 | |
| Diesel Engine | Power | YUNNEI 55KW | YUCHAI78KW | YUCHAI 78KW | YUCHAI91KW | YUCHAI 91KW | XINCHAI 110KW | WEICHAI92KW |
| Oil tank | Volume (L) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Water supply system | Water tank (L) | 400 | 500 | 500 | 620 | 780 | 860 | 1465 |
| Water supply | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | |
Why Daswell on-site mixing solutions work better in many projects?
As we know, there are many challenges in ready-mix transportation for many projects. And the consistent and reliable concrete supply is critical. Here you can see the advantages of using Daswell on-site mixing solutions.
High-quality concrete production. By producing concrete directly at the job site, the contractors can fully control the mixing process. The quality, time, and quantity are under control. With Daswell on-site mixing solution, you can produce fresh concrete on-site and pour immediately. This keeps the project running smoothly without delays or waste.
Multi-function. Daswell self-loading concrete mixers play key roles in the on-site mixing solutions. This mixer replaces loader, separated mixer, and transport truck. Its multi-functions mean lower equipment investment, lower labor cost, higher mixing efficiency and more stable construction progress.
Cost-effective and highly adaptable. For many contractors, this is a cost-effective and reliable way to ensure continuous concrete supply. Meanwhile, for some worksite, where large mixer trucks cannot drive, Daswell self-loading mixer can run smoothly. It eliminates dependency on batching plants and this also allows projects to progress even in difficult terrains.
In a word, choosing Daswell on-site mixing solution with self-loading mixer, you can control the construction schedule better. And it can offer you fresh and high-quality concrete consistently. This reduces transportation risks and costs, both on labor and equipment.
Why choose Daswell for your on-site concrete mixing solution supplier?
Many construction equipment suppliers only ship concrete machines from overseas. And the customers need to handle installation and service on their own. Different from these supplier, Daswell offers not only reliable equipment, but also the service and support. Choosing Daswell, you can get fast, local, and dependable equipment and service.

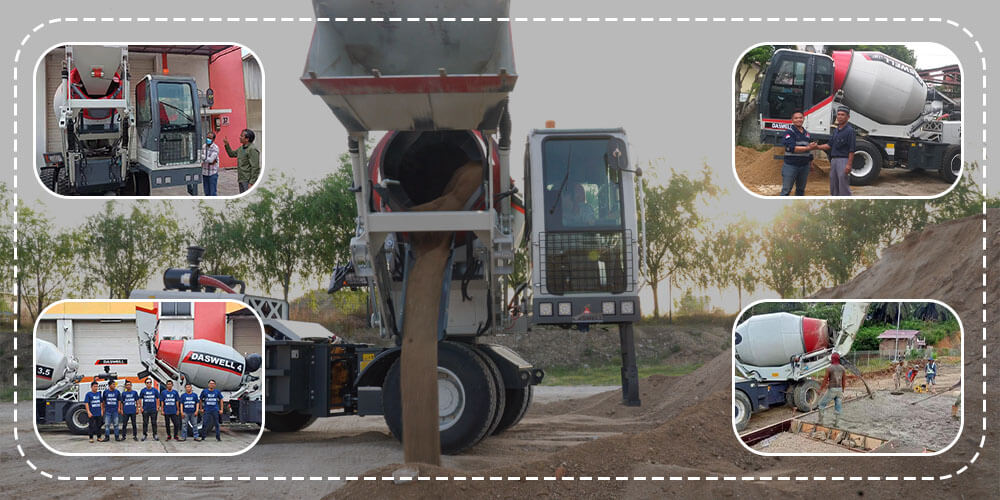

Daswell has established local offices, spare parts warehouse, and professional after-sales service teams in many countries. For example, you can get local service in Indonesia, Philippines, Egypt, etc. This is our strongest advantage and this is also the key reason many customers choose Daswell for their projects.
With Daswell local support, you will enjoy:
Fast delivery and short lead time
Daswell has local stock of popular equipment. For instance, you can get self-loading on-site mixing machines quickly with fast delivery. It is much faster than suppliers shipping from China with long waiting periods. This greatly helps your on-site concrete production start sooner and stay on schedule.
On-site installation and operator training
Our local technical team can guide installation and train your operators at your project site. Even if your team has not used a self-loading concrete mixer before, Daswell makes sure they will learn quickly and confidently.
Quick after-sales response
If there are any issues, you do not need to wait weeks for overseas engineers or imported spare parts. Daswell local technicians are near you. Thus, we can support your project at any time. This greatly reduces downtime. And it keeps your mobile concrete mixing solution working continuously.
Local spare parts availability
We stock essential parts locally. So, it is available for you to replace the parts efficiently. This prevents project delays and ensures your self-loading concrete mixers continues running reliably.
Complete concrete solutions
Except for the self-loading mixer for your on-site mixing solutions. Daswell also offers you various pumping machines. Whether you want efficient mixer pump machines, or high-volume trailer pump machines, we can meet your needs. And it is also applicable for you to buy concrete batching plants for ready-mix concrete production.
Benefits of Choosing Daswell Local Service for Your On-site Mixing Plant
With Daswell local service and on-site support, you can get:
- Stable project schedules without unexpected stops
- Lower long-term maintenance costs
- Reliable and consistent on-site concrete production
- A partner who understand local working conditions and construction needs
In Indonesia and Philippines, there may be many projects in mountain regions, islands, remote villages, and developing infrastructure areas. Daswell local service support plays a key role. What’s more, we are not just selling machines. We are providing a complete on-site mixing solutions. It helps your project run faster, smoother, and more cost-effectively.
If you are preparing for a project in Indonesia or the Philippines and need a reliable on-site concrete mixing solution, Daswell is ready to support you locally.
